Someday, this prosthetic heart valve might be the only one a child needs

bileaflet heart valve expanding to accommodate a growing heart
A breakthrough design could spare children from repeated operations to replace outgrown valves, and could also benefit adults with valve defects. At left, the valve in its unexpanded state; at right, its expanded configuration in a larger heart. (Sophie Hofferberth, Boston Children’s Hospital; Lara Tomholt and James Weaver, Wyss Institute for Biologically Inspired Engineering)

More than 330,000 children worldwide are born with a heart valve defect, and millions of others develop rheumatic heart disease requiring early valve replacement. Current prosthetic heart valves are fixed in size, so typically need to be replaced every few years as a child grows. For children receiving their first replacement before age 2, that means as many as five high-risk open-heart operations before they reach adulthood.

But a surprising new design created at Boston Children’s Hospital could allow children to keep the same prosthetic valve until adulthood. The research team, led by Pedro J. del Nido, MD, chairman of Cardiovascular Surgery at Boston Children’s Hospital, envision patients having the valve expanded through a minimally invasive balloon catheter procedure as needed.

As described yesterday in Science Translational Medicine, the valve underwent extensive benchtop studies, computer simulations, and testing in large animal models. All showed that the new design enables the valve to work across wide range of sizes, retaining its functionality.

“We hope to bring this new device into clinical testing fairly rapidly,” says del Nido, the paper’s senior author. “If our preclinical results hold up in human testing, this could transform the field.”

Less is more: A bileaflet heart valve

Commercially available prosthetic heart valves have three leaflets, tiny flaps that provide a one-way inlet or outlet for blood to keep it flowing in the right direction. The new design was inspired by human venous valves, found in the deep veins of the leg. Unlike our hearts’ native outflow valves, venous valves have just two leaflets. Nature has optimized their geometry to maintain closure and one-way blood flow even when the veins expand in diameter.

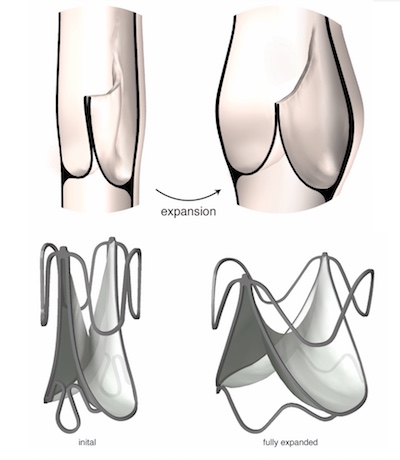

venous valve and bileaflet heart valve
At top, human venous valve geometry at rest and during expansion. At bottom, an expandable bileaflet heart valve inspired by the venous valve. The two-leaflet design enables the heart valve to adapt to growth, unlike existing three-leaflet valve prostheses. (Sophie Hofferberth, Boston Children’s; Lara Tomholt, Wyss Institute; and Matheus C. Fernandes, John A. Paulson School of Engineering and Applied Sciences, Harvard University.)

“Veins carry approximately 70 percent of our blood volume, and their dimensions can change dramatically depending on body position,” explains Sophie Hofferberth, MD, a surgical resident at Brigham and Women’s Hospital who led the research in del Nido’s Boston Children’s lab. “We mimicked the geometric profile of the human venous valve to design a bileaflet heart valve of programmed dimensions that is adaptable to growth without loss of one-way flow control.”

In multiple rounds of testing, valve prototypes were able to expand to accommodate growth and structural asymmetries within the heart. They remained fully functional across a range of dimensions, pressures, and flow rates.

Because the valve can expand without requiring the frame and leaflet to stretch or enlarge, it is compatible with a range of off-the-shelf materials, the researchers say. The researchers successfully and safely expanded the device at multiple timepoints in a growing sheep model, using a balloon catheter.

Potential for fewer blood clots

The researchers also observed that the bileaflet heart valve design encourages good blood flow through the valve. This could potentially reduce the risk for blood clots, a complication often seen with existing prosthetic valves. The team saw no evidence of blood clot formation in the growing sheep model over 10 weeks of observation, even without the use of blood-thinning medication typically given to prosthetic valve recipients.

If our preclinical results hold up in human testing, this could transform the field.

“Flow disruptions that lead to blood clot formation and early valve deterioration are a shortcoming of many existing devices,” says Hofferberth, who is first author on the paper. “Our design achieves a favorable flow profile that seems to facilitate effective valve washout and minimize flow stagnation, which is likely to be an important determinant of long-term device durability.”

The research team believes their data support initiation of a clinical study within one to two years.

More cardiac research from Boston Children’s Hospital

Mossab Saeed, Christopher Payne, Karl Price, and Peter Hammer of Boston Children’s Department of Cardiac Surgery were coauthors on the paper, together with Lara Tomholt, Matheus Fernandes, and James Weaver of the Wyss Institute for Biologically Inspired Engineering; Gerald Marx, Jesse Esch, and David Brown of Boston Children’s Department of Cardiology; Jonathan Brown and Elazer Edelman of MIT; and Richard W. Bianco of the University of Minnesota. The study was supported by a NIH-NRSA postdoctoral fellowship grant (1F32HL138993-01), an Early Career Award from the Thrasher Research Fund, and the Oakwood Foundation. A provisional patent has been filed naming several of the authors.
